Data Collection With ESRI Collector App

Part 1: Preparing your data in ArcMap

Try not to spend more than 1 (one) hour on this part

In this part of the lab, you will build a feature layer to use for data collection. You will create a geodatabase in ArcMap, create domains, add a feature class, and add the correct field types and configure them to meet the requirements of the data collection form. This is the equivalent of a data dictionary used with Trimble Terrasync. Once you have configured the information model, you will build a map in ArcMap and publish a feature service to your organization. In the next part of the lab, the feature service will be leveraged as a layer in a map that can be used to collect information in the field. We will use the ArcGIS online account that we created for lab 12.

Create your geodatabase

Geodatabases organize and store the data that you collect. Ultimately you will create a feature class to store the data that you will collect about street conditions on HSU campus. We will need to configure and collect attributes that are very similar to the ones we collected with Terrasync in labs 7 and 8. First you need to create the geodatabase that holds the feature class. Take the following steps to create a file geodatabase by using the Catalog window in ArcMap.

  1. Create the lab 10 Workspace in your TempData folder as usual
  2. Start ArcMap and open the Catalog window

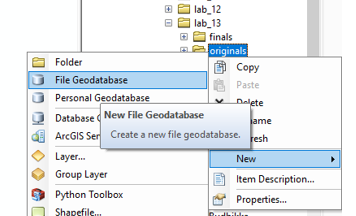

  3. Right-click the file folder in the Catalog tree where you want to create the file geodatabase
  4. Point to New
  5. Click File Geodatabase to create a new file geodatabase in the location you selected. Name your geodatabase collector_lab

Define geodatabase domains

Some fields in your data should be populated from a set of choices. By creating domains in your geodatabase, you provide a list of choices data collectors can choose from when they are working. This is the equivalent of a MENU attribute in the data dictionary. Later in this lab, when you set up the fields, you will use the domain.

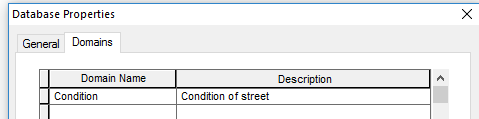

  1. In the Catalog tree, right-click the geodatabase and click Properties

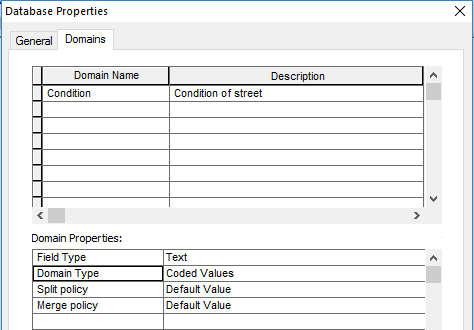

  2. Click the Domains tab
  3. Click the first empty field under Domain Name and type Condition for the new domain. Press the Tab key or click the new domain's description field, and type Condition of street
  4. When creating a new domain, specify a name that describes the parameter it governs. The description is a small sentence describing the purpose of the domain.

  5. Under Domain Properties, click the field next to Field Type and under the pull down menu, select Text. Leave everything else as default

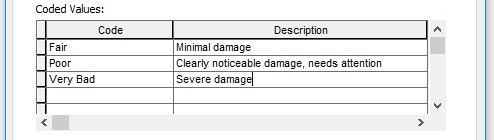

  6. Click the first empty field under Coded Values and type Fair for the first valid code
  7. Press the Tab key or click the coded value's Description field. Type Minimal damage as the user-friendly description for this coded value
  8. Repeat steps 5 and 6 until all valid values and their descriptions have been typed as shown below:
  9. Click OK to create the new domain in the geodatabase and close the dialog box

Define the feature class

Next, you will create the feature class to hold the collected information. Feature classes are essentially containers for information, where the pieces of information share similar characteristics, whether that be their geometry or their attributes.

  1. In ArcCatalog, right-click the collector_lab file geodatabase, point to New, and click Feature Class
  2. Note: A feature class is a collection of features that share the same geometry type and information model.

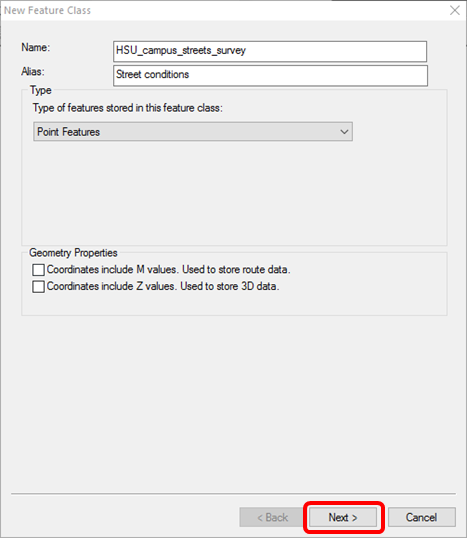

    The New Feature Class wizard opens. It walks you through the necessary steps to customize the feature class.

  3. Type HSU_campus_streets_survey as the name for the feature class, type Street conditions as the alias, and choose Point Features as the feature type. Click Next
  4. You may be wondering why we chose point type for streets, which are line features. The reason for this is that we need to record each damage incidence at the exact location.

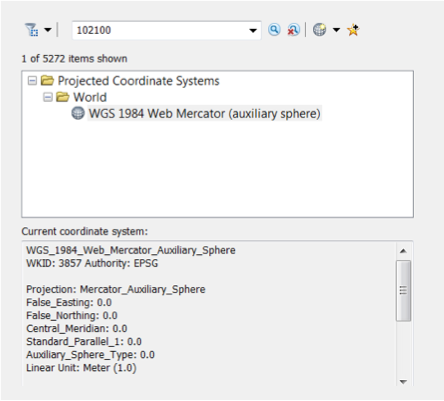

  5. When creating this feature class, you need to choose a coordinate system. Coordinate systems allow your features to be projected properly and accurately on a map, making the features appear in the correct locations. For this exercise, choose WGS 1984 Web Mercator (auxiliary sphere)
  6. Click Next to accept this coordinate system
  7. Click Next to accept the default XY Tolerance settings
  8. Click Next to accept the default database storage configuration

Set up the fields

The fields are a key part of your information model. They provide the structure of the information you will collect and provide rules for the types of information collected about a feature

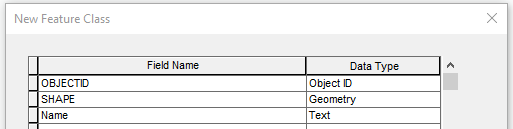

  1. The first field you create will be used to record the name of the street. Click the first empty row under Field name and type Name. Under Data Type, choose Text

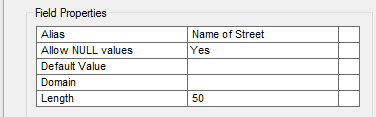

  2. Under Field Properties, click the field next to Alias, and change the default alias Name to Name of street. The alias is what your field-workers see on the data collection form, so it's important that it makes sense to them

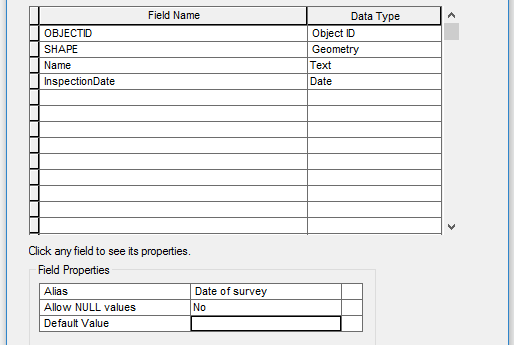

  3. Click the next empty field and type InspectionDate, then choose Date as the data type
  4. Under Field Properties, click the field next to Alias, and change the default alias InspectionDate to Date of survey. Set Allow NULL values to No

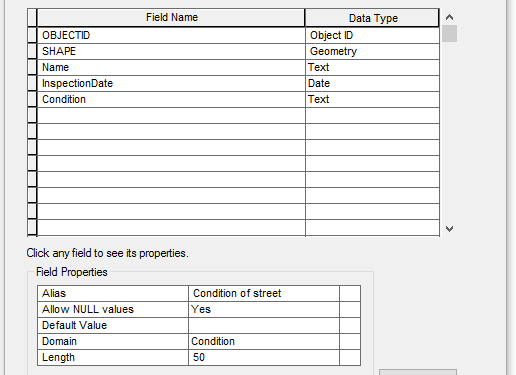

  5. The next field you create takes advantage of the coded domain created earlier in this lab. Click the next empty field row and type Condition. Choose Text as the data type
  6. Under Field Properties, type Condition of street as the alias for the field
  7. Click the empty text box next to Domain and choose Condition

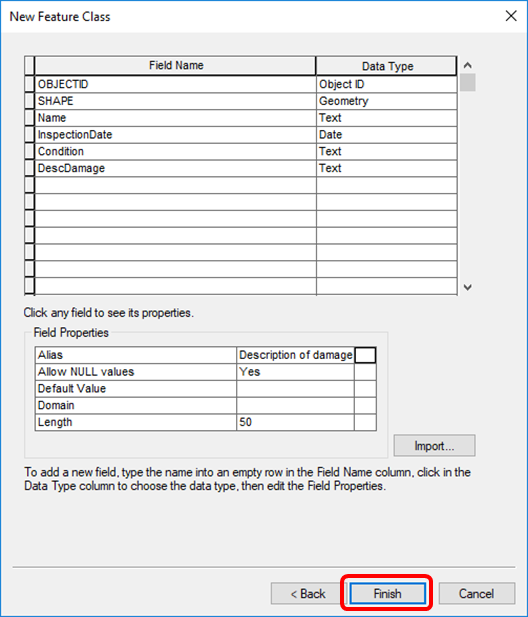

  8. The final field to add is the description field. Name this field DescDamage and make it a text data type. Update the alias to Description of damage
  9. Click Finish to complete the feature class creation
  10. The feature class you created is added to the map and appears in the table of contents in ArcMap.

  11. To allow collection of picture attributes in the field and attach them to the assessment report, enable attachments on the feature class you just created. To do so, right-click the feature class in the Catalog window, choose Manage, and click Create Attachments

Theme your data

You've now created your information model. In this section, you will define how those features look on your map

  1. To update how your features look, right-click the layer name in the Table of Contents panel, and choose Properties
  2. If your feature class is not yet on the map, drag the feature class from the Catalog window into the Table of Contents panel in ArcMap

  3. Click the Symbology tab

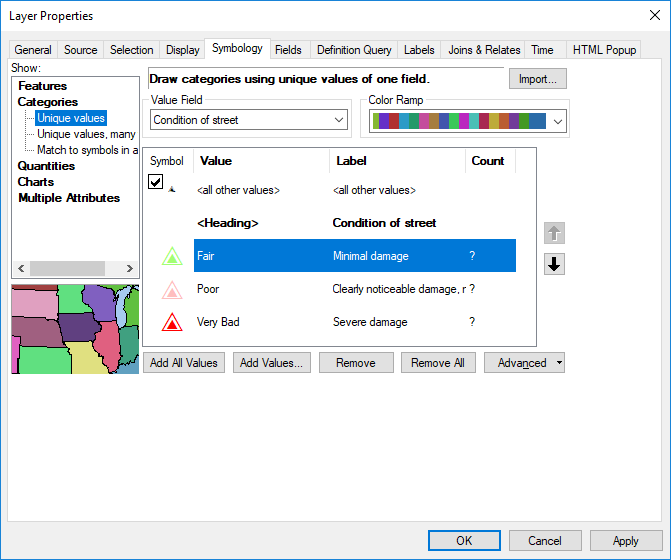

  4. Click the Categories section under the Symbology tab and choose Unique values
  5. In the Value Field drop-down list, choose the Condition of street field and click Add All Values
  6. Right-click on Poor and choose Properties for All Symbols

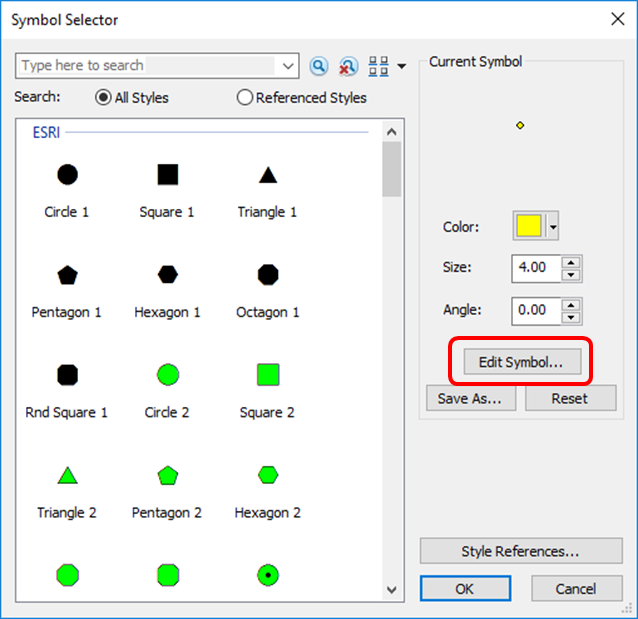

  7. Click Edit Symbol

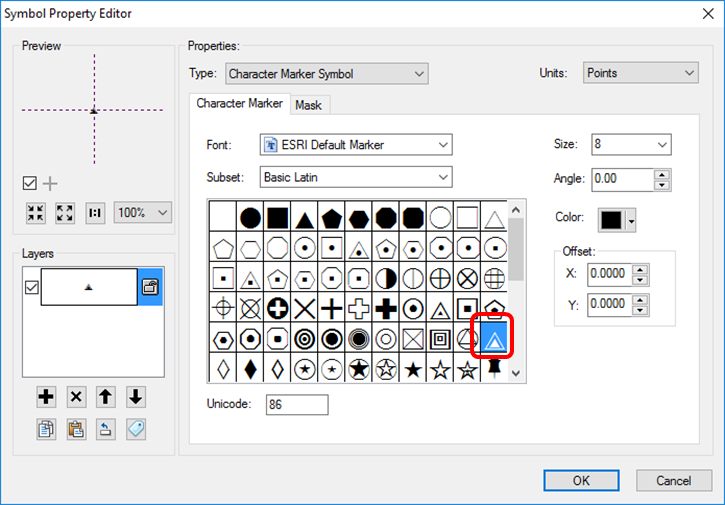

  8. Under Type, select Character Marker Symbol and choose the symbol shown below and click OK
  9. Double-click each condition icon, and choose a different (appropriate) color for each of the condition symbols and set the symbol size to 24
  10. Click Apply and click OK. The symbols update in the table of contents
  11. Click File and choose Save to save your map document in the lab 10 workspace. Name your map document collector_lab.mxd

Publish your data

Your data needs to be available online to use it in your map. You can publish the data to your ArcGIS Server or to your ArcGIS organization. In this lab, you will publish the service to your ArcGIS organization, where it will be available as a layer that you can add to your maps. Publishing requires an ArcGIS organizational account with the ability to publish hosted feature services. You will use the account you created for lab 12.

  1. If you're not already signed in to your ArcGIS organization in ArcGIS Desktop, sign in
  2. In ArcMap, click File and choose Sign in

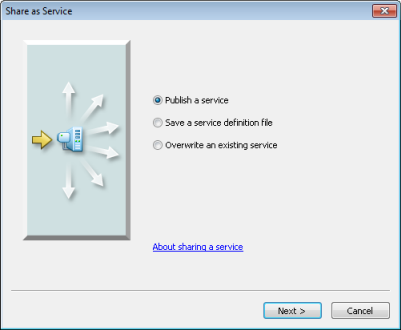

  3. Click the File menu, choose Share As and click Service
  4. The Share as Service dialog box opens
  5. On the Share as Service dialog box, confirm the Publish a service option is selected
  6. Click Next

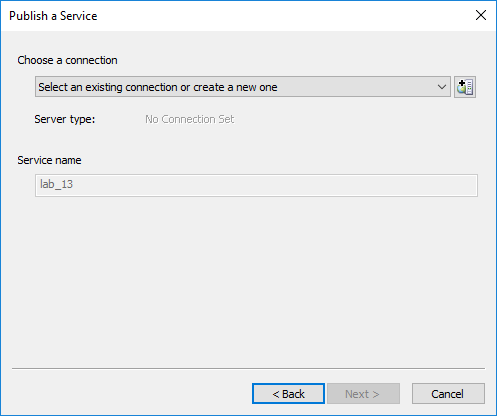

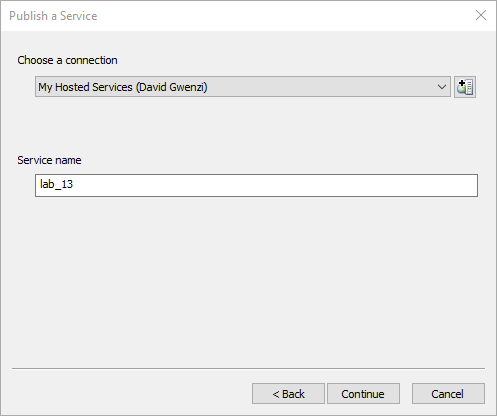

  7. The Publish a Service dialog box opens

  8. On the Publish a Service dialog box, click the drop-down arrow and choose My Hosted Services (Your name)
  9. Make sure collector_lab is set as the service name and click Continue
  10. The Service Editor window opens

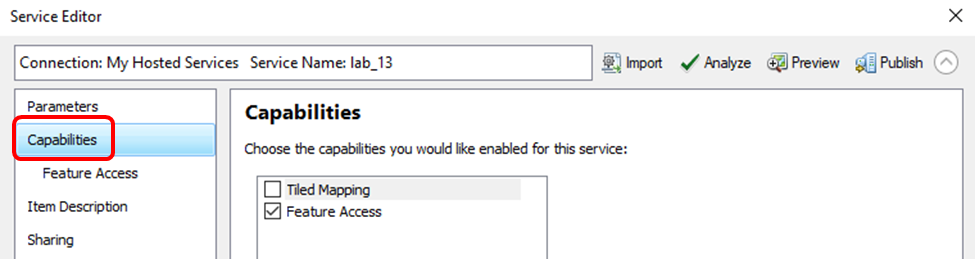

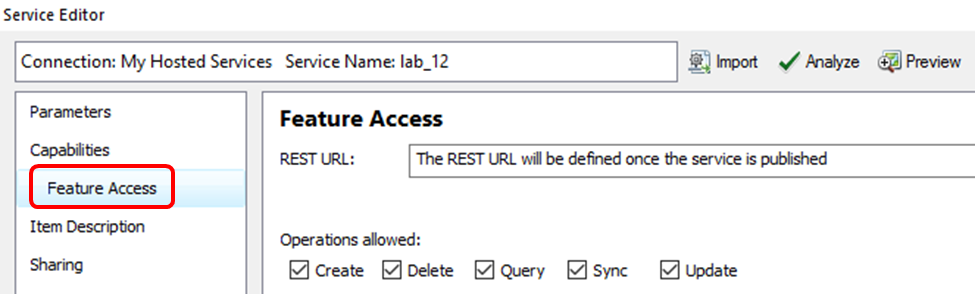

  11. In the left pane in the Service Editor window, click Capabilities
  12. In the right pane, check the Feature Access check box, and uncheck the Tiled Mapping check box
  13. This specifies that you will publish a feature service rather than a tiled map service.

  14. Under Feature Access, check Create, Delete, Query, Sync, and Update
  15. These options specify what data collectors in the field can do with the data. For this lab, you need them to be able to add new damage incidences as well as edit and delete existing ones, so you enable options to create, update, and delete. Sync is enabled to allow you to take the map offline

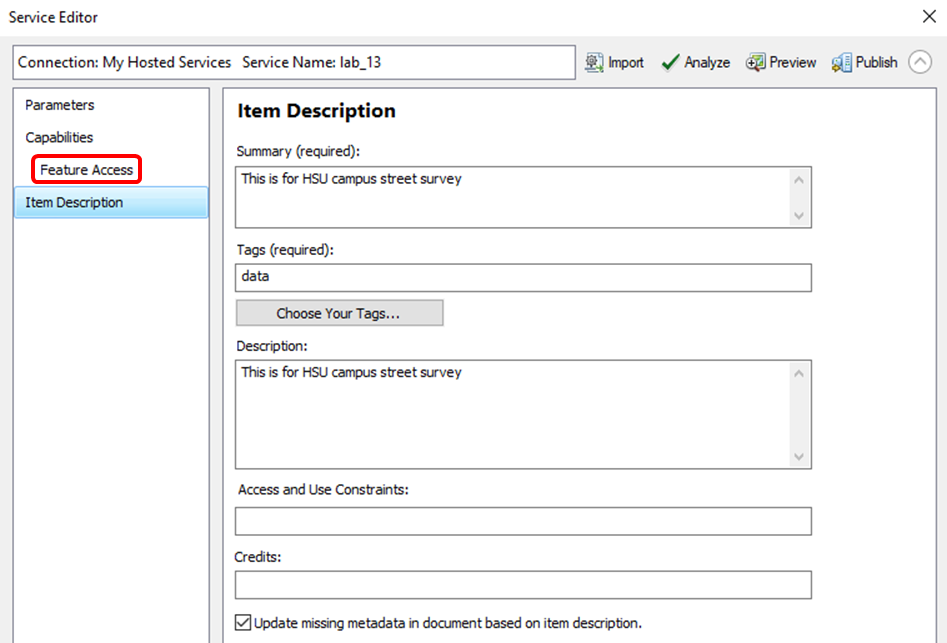

  16. In the left pane, click Item Description. Type data for the Tags (required) window and type the text for the Summary and Description as shown below:

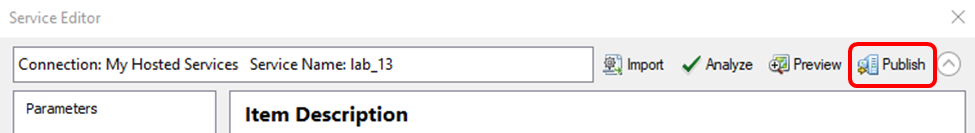

  17. On the Service Editor toolbar, click Publish
  18. You will see various status messages as the service publishes, and then you will see a Service Publishing Result message. This may take some time, BE PATIENT!

  19. Click OK on the result message
  20. Minimize ArcMap or exit the ArcMap application. Save your changes if prompted
  21. You are done for this first part. In the next part, you will learn to create and share a web map, collect data in the field, and download and analyze the field data in ArcMap.

Part 2: Create and share a map for you to use in the field

Try not to spend more than 30 (thirty) minutes on this part

Please note that the ArcGIS online interface is constantly changing so some page configurations may look slightly different from the instructions. Try to pay attention to everything you are doing so you can easily figure out the new settings on your own before calling for help. The reference to lab_13 in the figures is also outdated so make sure you reference to collector_lab instead

In this part of the lab, you will create a map to use to collect data about street conditions. You will build a map by starting with a basemap, adding the Street Conditions layer (that you published in part 1), configuring the data collection form, and customizing the application settings. Finally, you will share the map to make it available to anyone in your organization.

Create a map

  1. Open a web browser to your organization's home page. Go to
  2. Click the Sign In link in the upper right corner
  3. Log in using your ArcGIS online account details
  4. Your organization's home page appears

  5. Click Map on the ribbon at the top
  6. A new map named My Map appears, containing a basemap

  7. Pan and zoom the map so that the Humboldt State University area is visible. You can also search for Humboldt State University in the search window
  8. Click Basemap and choose Streets

Add a layer to the map

For your map to be accessible in Collector, add an editable feature layer.

  1. Click Add
  2. and choose Search for Layers

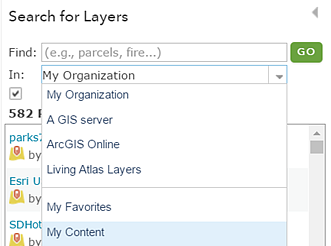

    The Search for Layers side panel appears.

  3. Set the In drop-down list to My Content
  4. A list of relevant layers is returned. Do you see the layer you created in lab 12?

  5. Click Add on the collector_lab layer to add the result to your map
  6. At the moment, nothing shows up on the map because our layer does not have data yet. Don’t worry, you will add some data later in this section.

  7. Click Done Adding Layers at the bottom of the side panel
  8. The Search for Layers side panel closes, and the Contents side panel appears.

  9. So that you have some data to see when you first open Collector, you can add some data to the layer by doing the following:
    1. Click Edit
    2. on the ribbon
    3. Three feature types appear in the side panel, showing the symbols that represent the different conditions of the streets in the template. Choose the Minimal damage (fair) symbol in the side panel and click the map on 17th street, about halfway between B street and Wildlife Ln

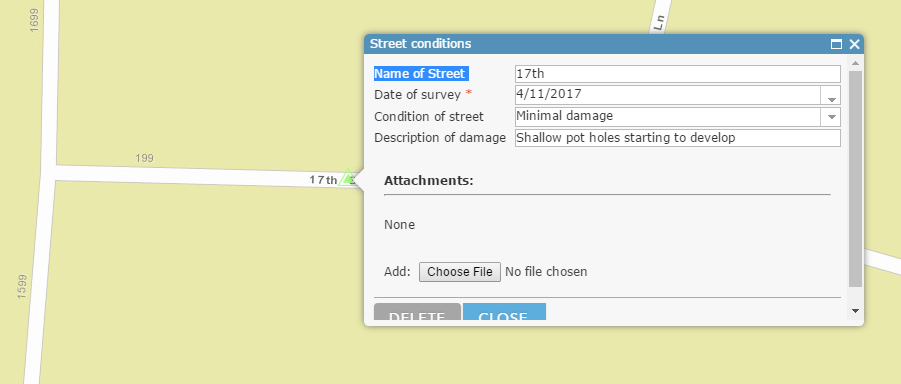

    4. The attributes for the newly added feature are displayed on the map. Enter the appropriate information into the attribute fields as shown below:

  1. Click CLOSE
  2. A new feature is added to the map. Repeat steps a to c to add at least 2 more features of any damage extent. Ask your classmates if you don’t know any place with a certain extent of damage.

Save the map

  1. Click the Save
  2. icon on the ribbon and choose Save

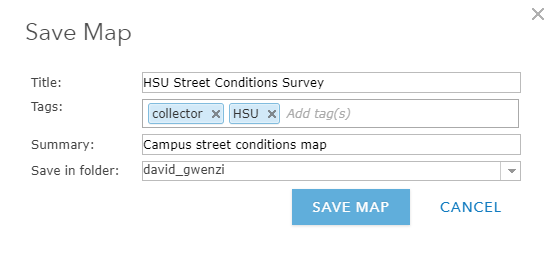

    The Save Map dialog box appears.

  3. Complete the fields on the Save Map dialog box as shown or as appropriate. Hit Enter after each tag, if you are entering 2 or more
  4. Click Save Map

Test the pop-up

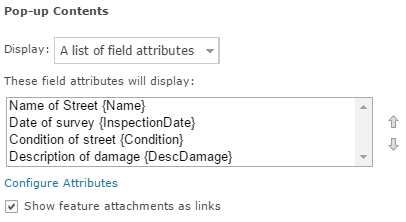

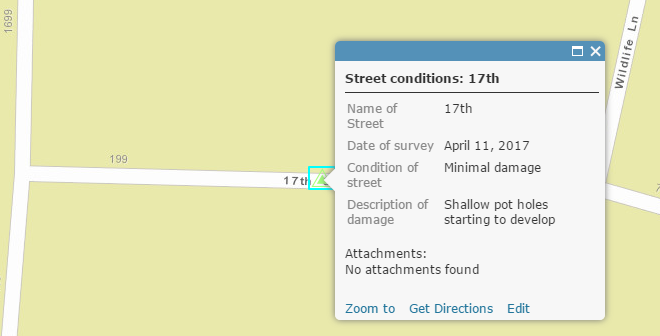

  1. Zoom in on the map to explore the Street Conditions of features you created above
  2. Click any one of them
  3. Information about the Street Condition displays. This information is available to anyone viewing the map. It also determines the information that can be collected while in the field. The same information shows in the pop-up here and in the app. The fields you see depend on the Street Conditions layer you added to the map. What you see doesn't necessarily need to match this image.

  4. Close the pop-up
  5. You have now made a map by adding a basemap and some layers, and you explored its pop-ups. Much of the value of this map lies in the information contained in its pop-ups. In the next section, you will see how to configure pop-ups to display the information you want to share.If you want to configure the pop up to look differently, follow the instructions under OPTIONAL below

Customize the application settings

Some of the capabilities of maps can be turned on and off. These settings include the ability to route, measure, change basemaps, find locations, and track the location of collectors. By default, the routing, measuring, switching basemaps, and finding locations by address capabilities are enabled. In this section, you will turn on the find locations by layer (feature search) capability, so you can search features in the field.

  1. Click the About
  2. icon on the side panel to display the map's details
  3. Click More Details to go to the map's item details page
  4. Click the Settings tab

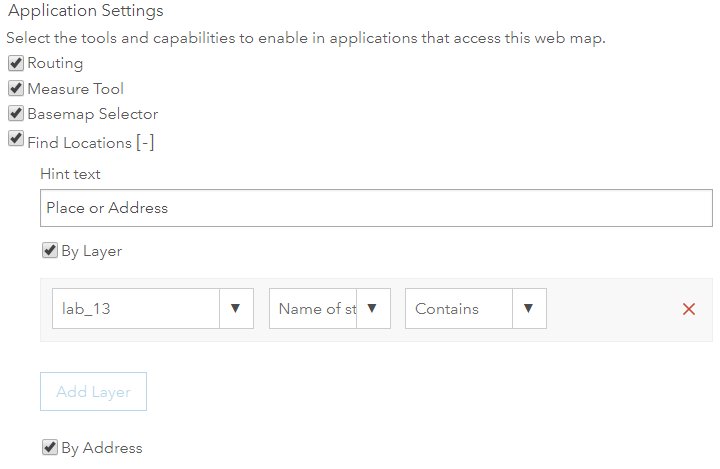

  5. All the way down, under Find Locations, check the By Layer check box to enable feature search for your map
  6. Click Add Layer to specify which layer can be searched. By default, the collector_lab layer is set to be searched for incident numbers
  7. Click Save to save your application settings
  8. Your map is created, configured, and customized. It's ready to be shared with others in your organization.

Share your map

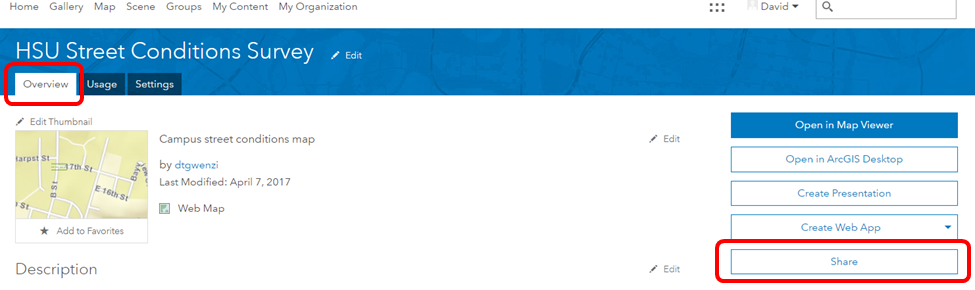

  1. Near the top panel, click the Overview tab and click Share

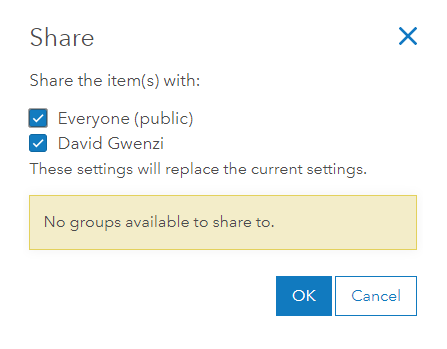

  2. On the Share dialog box, check the check both boxes to share the item
  3. Your sharing options depend on the organizations and groups to which you belong. For large organizations, you will probably have several different groups you can choose to share with.

  4. Click OK and on the next window, click Update Sharing for the sharing to match that of your map

Sign in to the app to see your map

Your map is now ready to use in Collector.

  1. Start the Collector App on the tablet
  2. Sign in with your organizational account if you haven't already done so
  3. Choose ArcGIS Online to connect to your organization
  4. Provide the requested information to sign in
  5. Find and tap on your HSU Street Conditions Survey Map
  6. Select the Street Conditions Survey map card to open the map. The extent of the map that loads is based on your current GPS position
  7. Select an existing feature to open the pop-up you configured and see the information about the feature. You may need to tap twice
  8. Note: This all depends on the feature you have selected, the existing features you see may not exactly match those shown here, but that's okay, you can look at any existing feature.

    Actions you can take with the feature are displayed at the bottom of the pop-up panel.

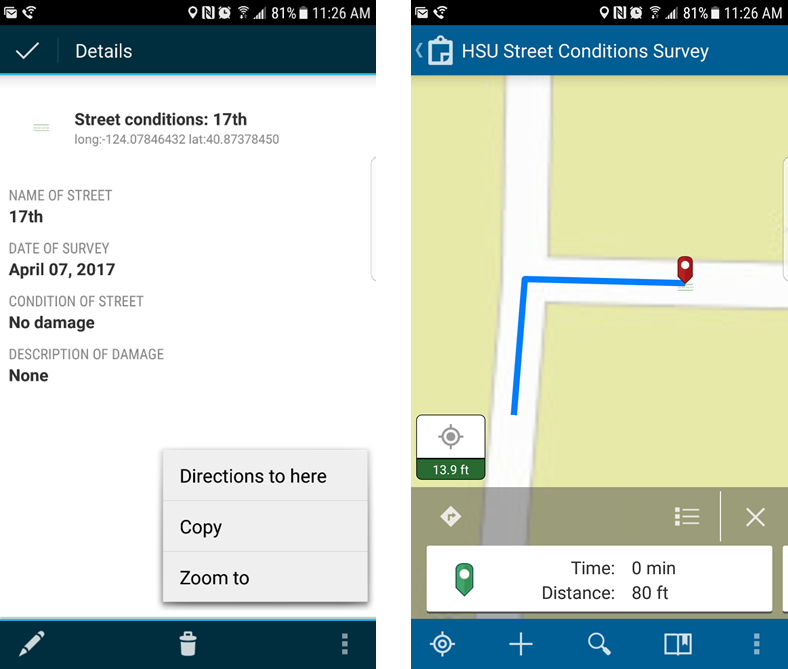

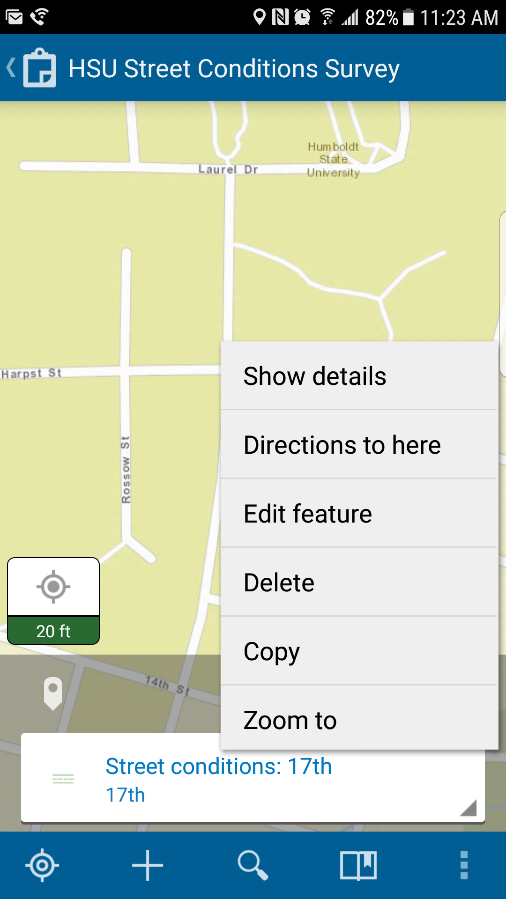

  9. Click the More
  10. icon to see other actions you can take with the feature

    You ain’t too old school to operate a smart mobile device. You know better how to navigate your device. There is a lot you can do from here. Try out different things. You can even ask for directions to the feature, from your current position.

You have created, configured, customized, and shared a map for data collection. Your map is now ready to use in Collector and is available to all the members of your organization. Now you are ready to collect data on this map

Part 3: Collect Data

Try not to spend more than 1 (one) hour on this part

It will be handy to print instructions 1 to 7 and take the print out to the field, or make sure you have an electronic copy that you can access in the field

In this part of the lab you will learn to:

Open the map

  1. Start the Collector app and open the HSU Street Conditions Survey map
  2. The Street Conditions Survey map opens. The extent shown reflects your current location.

    My Location

    indicates your location on the screen and as you move, the map pans to remain
    centered on your location.
  3. To add a new incidence, click the + icon on the task bar and pick the appropriate condition
  4. An intelligent data entry form displays in the panel. The contents of this form match what was authored as the pop-up for the map in ArcGIS Online. Notice that the location of the damage has already been set based on your location. In the next step, you will change that location by interacting with the map. For now fill in the form with the appropriate information and once you are done, click the check mark icon to accept the record you have just entered. For the date attribute, you can save yourself a lot of time by just choosing Use current. The incidence is shown on the map.

    Note: You may receive a message saying that you have poor location accuracy, and the location of the incidence will say Unknown in the panel. For this exercise, that's okay. In the next step, you will use the map to provide a location. To use your location on the map, you can adjust your required location accuracy. Select the Settings icon and type a number in the text box under the Required accuracy section so that your current accuracy is within range of the required accuracy. When you're finished, select Close.

  5. Now, assume that you can view the damage, but you're not at its location. Perhaps it's inaccessible due to other things happening on the street. However, you still want the incidence that you collect to be associated with the correct location. By default, Collector used your current location to set the collection location; use the map to set a different location for the Street Conditions.
  6. To place the incidence more precisely on a touch device, press and hold to get a magnifier, and use that to place the assessment. Click on the More icon and select Collect here.
    Select the appropriate condition and provide required information in the form.
    The incidence is shown on the map.

Add a photo

In the previous sections, you created a new incidence and collected the required data. Now you will add a photo of the condition as additional attribute for your Street Conditions.

  1. Use any method you wish to record a new incidence.
  2. On the task bar, click the Add attachments
  3. icon and in the pop up window, select Camera

    The camera opens on your device.

  4. Take a photo of the damage.
  5. Select Use photo
  6. or Retake until you are satisfied with the photo.

    Once you accept a photo, you're returned to the app, and your photo is included in the panel and ready to be added to the current record. You can also shoo the photo first and then pick it from your gallery.

    Collect at least 5 more damage incidences along your assigned street using any method of your choice.

Save, share, and review the data

You have completed your Street Conditions survey. Now you will save it, share it, and review it.

Save the Street Conditions Survey map by selecting Submit

Messages that show up indicate that the changes are being submitted and notify you of success. The feature is added to the server

You can see the Street Conditions you created on the map. Since your edits are saved on the server along with all the other Street Conditions data, your Street Conditions data is now shared with everyone using the map.

Back in the Office

This is what you will do when you get back to the office in a one man job. If a number of people are working on the project, there can be one person dedicated to downloading the data in the office as the field crew syncs the data they are collecting in real time.

  1. Log in to your organization account at
  2. Click on Content and then on the collector_lab Feature Layer (hosted)
  3. On the window that opens up, click Open in Map Viewer
  4. Pan and Zoom to the area where you collected your data
  5. You should see the locations of all the incidences that you recorded in the field. To view a photo, simply click on the link shown under Attachments:

  6. To view a photo on your mobile device, select the photo.
    • If your photo has already been downloaded, you immediately see the photo in full-screen mode.
    • If your photo has not been downloaded, the photo placeholder
    • turns into a thumbnail of the
      photo you took.
      After the download is complete, select the photo again to see the photo in full-screen mode.
  1. In the full-screen viewer, select Back to return to the map.

Download the data into ArcMap

  1. Log in to your organization account at
  2. Click on Content and then on the collector_lab Feature Layer (hosted)
  3. On the window that opens up, click Export Data and choose the format the you want e.g Shapefile. If you want to view the images in ArcMap, choose the FGDB format
  4. In the window that pops up, give your export an appropriate name and enter Data under Tags: and hit Enter
  5. Click Export. It may take a few minutes to prepare the data for export. Again be patient!
  6. On the next window, click Download
  7. A zip file with the data will be downloaded to the Downloads folder of your computer by default but you can redirect it

  8. Save this file in your working directory and extract the data.


  1. Download your data as a shapefile and save the zipped file in the directory:
    G:\Team Drives\GSP330 Spring 2019\lab_data\lab_10
  2. Name the file according to your team name, e.g
  3. Challenge : When everybody has uploaded their data, copy the zipped files to your own working directory, exctract them, and combine all the shapefiles into one.
  4. Create a professional map of the campus street conditions


Here are some other cool things you can do with collector. Feel free to try these out later in your own time.

1. Go offline

In this section, learn to:

In the field, you often work in areas without a data connection. If that's the case, you can download the map to make it available when you do not have a connection. You can also download or copy basemaps directly to your device and reuse them across multiple maps. Once you have your map offline, you can work with your map, including collecting and editing data, in the same way as when you're connected.

Finding places requires an Internet connection when working with an online or offline map. You can search your own data without a connection if your map has feature search enabled. When using an offline map, you can't switch to an online basemap.

Download the map

To work offline, download the map to your device.

  1. If your map is available for download, select Download
  2. to start downloading the map.

    Note: Only maps that can be taken offline have the Download option on their map cards. To support taking a map offline, the author needs to prepare the map for offline use If you previously downloaded or copied a basemap to the device, you can reuse that basemap.

  3. Using the map, zoom in or out as needed until you can see the entire work area that you need to download.
  4. The work area is the extent or geographic area of the map you download. Before downloading, make sure you can see your entire area of interest.

  5. Select Map Detail and zoom in or out until the map is showing the detail you need to work with in the field.
  6. Map detail determines the quality or resolution of the map you download. Before downloading, make sure you can see all of the information you need on the map.

  7. Select Download.
  8. You are taken back to the Map Gallery and the map downloads. Depending on the size of your map, the download could take some time. During download, a progress bar displays and a cancel option is available.

  9. When the map has finished downloading, you can open and use the map without an Internet connection.

2. Use basemaps on your device

Basemaps provide the frame of reference for your data. When working offline, you can use basemaps on your device instead of downloading a basemap for each map you use offline. This has a few advantages: it's faster in most cases and allows you to prepare basemaps for much larger areas.

  1. Prepare a tile package (.tpk) using ArcGIS Desktop. For details, see How to create a tile package in the ArcGIS help.
  2. Open Collector: Click the Menu
  3. icon and select On Device
  4. Select Basemap
  5. The Open dialog box appears.

  6. Browse to the tile package you prepared, select the tile package, and select Open.
  7. The Basemaps tab of the On Device map collection displays, showing your added basemap.

  8. To use your newly added basemap, take the following steps:
    • Open the map with which you want to use the basemap.
    • Select More..., Basemaps
    • , and select On Device.
    • Select the newly added tile package (.tpk).

Sync your work

Sync allows you to send and receive updates for maps you've taken offline. Anytime you regain connectivity and
want to check for new updates or send your updates for other people to see, select Sync on the map card
in the Map Gallery

You can configure Collector to only push your edits up to the server when you sync, and not to pull down edits made by others while you were offline. This reduces the amount of data transferred, making it faster to share your changes, and saving data transfer costs on cellular networks. If the edits being made by others are important to you, leave Push Only synchronization disabled.

To enable push only synchronization, click the Menu icon then select Settings , and select General

Turn on Push Only synchronization.

Note: If you aren't seeing expected updates to features that you are not currently working on, you might have enabled Push Only synchronization accidentally. If you aren't seeing any features besides those you've added, or attachments for features you are not currently working on, your map author may have configured the map to limit the data retrieved from the server. Enabling Push Only synchronization overrides the author's settings.

Remove maps and basemaps from your device

Occasionally, you may need to manage the maps or basemaps on your device. You may want to remove the map for a number of reasons: you're finished with it, it's out-of-date, it's taking up too much space on your device, or you want to use it while connected.

To remove a map or basemap, select Menu and select On Device. Switch between maps and basemaps to access the content you want to remove from your device. Find the map card of the item to remove, select More... and select Remove.

Note: If a basemap is being used for one or more maps, you cannot remove it from your device without removing the map or maps first.

When removing a map, you can remove the entire map (including the basemap), or you can remove the map and save the basemap for future use. This is useful if you expect to reuse the basemap with another map.

3. Configure the data collection form

In the previous section, you made a map by adding a layer and explored the details exposed in the pop-ups. You can customize the information the pop-ups display, as well as the information collected in the field.

  1. Click Show Contents of Map
  2. on the side panel to display the Map Contents panel.
  3. On the side panel, hover over the Street Conditions layer and click the small ellipsis to the right of the tools and choose Configure Pop-up .
  4. The layer properties context menu appears.The default pop-up title consists of the layer name (Street conditions) plus a field name in curly brackets. The fields come from the data in the layer on your map. In this case, the field name is Name

  5. Farther down the Configure Pop-up panel, in the Pop-up Contents section, click Configure Attributes.

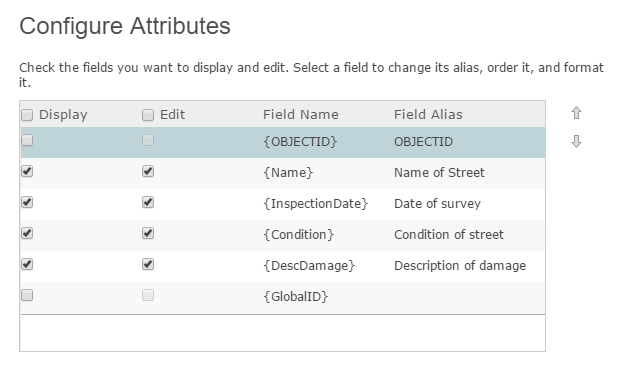

  6. The Configure Attributes dialog box lists the features' fields by their display state (on or off), field name (which can't be changed), and field alias (which can be changed).

  7. On the Configure Attributes dialog box, in the Display column, check/uncheck the check boxes for what you want ddisplayed/hidden, as you prefer
  8. Click OK to close the Configure Attributes dialog box
  9. Click OK at the bottom of the Configure Pop-uppanel
  10. Click a Street Condition on the map to see its updated pop-up
  11. Close the pop-up on the map
  12. Click the save
  13. icon on the ribbon and choose Save

© Copyright 2018 HSU - All rights reserved.
